Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Name: Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution
Brand: zhuoheng
Price: 65 USD

Quality Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution wholesale

Applicable Industries : Food & Beverage Factory

Showroom Location : None

Condition : New

Production Capacity : 80-300kg/h

Type : automatic pasta machine/

Place of Origin : Shandong, China

Brand Name : zhuoheng

Voltage : 380V/50HZ or customized

Power : 21/37/45kw

Dimension(L*W*H) : 20/25/35*4*4m

Weight : 5000 KG

Warranty : 2 Years

Marketing Type : Ordinary Product

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 2 years

Core Components : Pressure vessel

Key Selling Points : Automatic

After-sales Service Provided : Engineers available to service machinery overseas

Name : automatic pasta machine/italian pasta production line

Function : Multifunction

Material : Stainless Steel

Capacity : 300 kg/h

Product name : automatic pasta machine/italian pasta production line

Color : Silvery

Raw material : Whear Flour

Feature : Single screws extruder

Motor : Siemens

Packaging Details : Your automatic pasta machine/italian pasta production line are always wrapped by film completely and safely and then packed in strong fumigation-free case or 20'/40' container for delivery. We take good care of each machine for you.

Supply Ability : 8 Set/Sets per Month automatic pasta machine/italian pasta production line

Price : $65,000.00/sets 1-1 sets

MOQ : 1

Delivery Time : 20-30 days

Contact Now

Products Description

Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution

Model	Installed Power	Consumption Power	Output	Host size
TXF-100	35kw	21kw	80-100kg/h	2.2x0.8x1.8m
TXF-200	50kw	37kw	200kg/h	3.9x2.8x4.5m
TXF-300	60kw	45kw	300kg/h	4.5x3.5x4.5m

	100kg/h	200kg/h
Frequency converter	Delta	Delta
Electrical device	Schneider (such as: air switch, AC contactor)	Schneider (such as: air switch, AC contactor)
Main motor	Siemens	Siemens
PLC controller system	Schneider	Schneider
Host speed	25r/min	35r/min
Rotary cutting speed	100r/min	100r/min

The purpose of automatic Italian pasta production lines is the production, processing and packaging of food dough (which can be long and short) having a shelf life that generally ranges from a few weeks up to about three months. The product is realized by means of kneading and molding, which are different depending on the required format and the kind of pasta to be produced.

This machine line can use wheat flour as main material to make different shapes pasta , like tube , elbow , screw , shell etc .Equipment configuration is perfect , advanced production technology ; good quality products , simple and reliable operation ; is the ideal equipment to make macaroni .

1.Vacuum feeding system: it will convey the flour to the storage hopper on top of the extrusion unit automatically.
2.Vacuum mixing and extrusion system: mixing and extrusion both are in vacuum condition, mixing includes high-speed mixing, primary mixing, secondary mixing.
3.Cutting system : speed adjustable
4.Vacuum creation system:consists of vacuum water tank, vacuum pump, vacuum buffer tank, vacuum pipe, vacuum pressure gauge, check valve and three-way deflation valve.
5.The automatic water supply system includes storage water tank, water pumps, water inlet and outlet pipes, quantitative valve, flow meter and water tower.

The mold is imported from Italy, the material is copper + Teflon, and the mold plate is made of copper, which will make the surface of the produced product smoother.

Is subsequently pasteurized to break down the bacterial load, dried to remove the moisture present in the cooled surface and to prevent that the bacteria can multiply. After undergoing the treatments, the product is weighed and packaged by thermoforming or vertical packaging. If necessary, the product after the packing can be further treated to achieve a longer shelf life: the sterilization. In this case it is transported to the input of a static cell to undergo a second pasteurization and immediately after it is cooled by chiller..

Function: Low temperature and slow baking ventilation, with double doors, heat preservation material at 50-60℃ for 6-8 hours, energy saving 40%-50% than conventional Function: evenly heated, better baked products

Click here for detailed information

Jinan Zhuoheng Extrusion Machinery Co.,LTD established since 2008 year byexperienced engineers. We SINCERELY treat every customer and provide excellent after-sale service.

Zhuoheng has developed a "one stop factory" for the food machinery industry.Zhuoheng has a comprehensive manufacturing program offering equipment and systems to customers in the extruded snack food processing machinery and allied industries. We can supply individual items of equipment or complete factory layouts and lines, which are custom-built to suit the requirements of customers.

Exported countries:
Asia { Thailand, Indonesia, East Timor, South Korea, India, Bangladesh, Saudi Arabic, Turkey, Iraq, Israel,Kazakhstan,Tajikistan,Uzbekistan, Turkmenistan }
Africa { Nigeria, Benin, Algeria, Egypt, Ethiopia, Ghana, Namibia, Uganda, Zimbabwe}
Europe { Russia, Bulgaria, Ukraine, Poland}
North America { America, Canada }
South America { Brazil, Bolivia }
Oceania { New Zealand }

Delivery: 20-40 working days after deposit.

Packing:Machines are always wrapped by film completely and safely and then packed in strong fumigated case and 20'/40' container for delivery.

FAQ

Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food & feed extrusion machine.
We have own factory and R&D department. SGS has certified our company on site.
Q2. What is your payment terms?
A: Strongly recommend to use Alibaba’s Trade Assurance.
T/T :30% prepayment,70% before delivery. L/C at sight is available.
Other payment is negotiable
Q3.Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.

Q4. What about the lead time?
A:Regular products:20-30 working days Customizable products:30-40 working days.
Q5. Can you provide food or feed formula ?
A: We can provide basic formula for produce the food etc.
And help customer to produce new products according to customer’s formula.
Q6.What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use.
Supply spare and wearing parts on discount.
Help customers to solve any other problems.

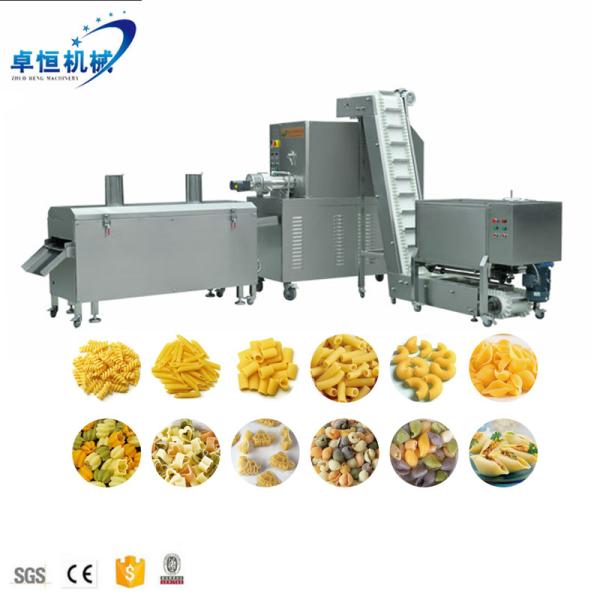

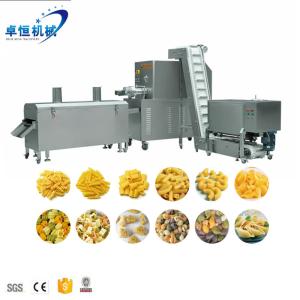

Automatic Italian Pasta Production Making Machine Line for Food Beverage Distribution Images
